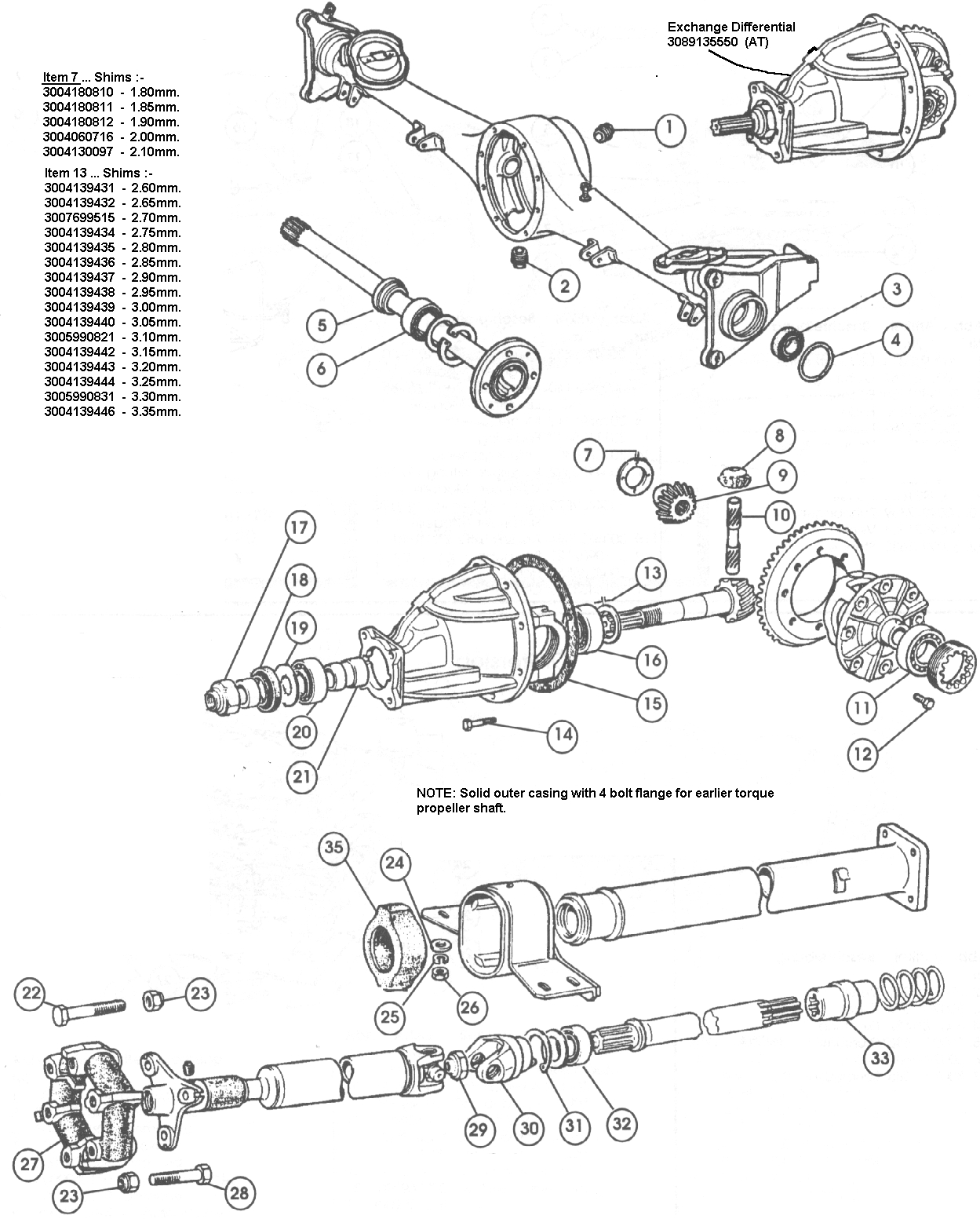

Rear Axle & Prop-Shaft – 1966-69

  1. Parts
  2. Fiat 124
  3. Rear Axle & Prop-Shaft – 1966-69
Image Number Product Price ex VAT
5 OUTER O RING 124 £2.95
6 WHEEL BEARING RETAINER 124 1978-85 £4.20
7 OUTER AXLE BEARING 124 SPIDER 1968-78 £11.63
9 CRUSH SLEEVE 124 1968-1982 £17.25
14 GASKET FOR DIFFERENTIAL 124 SPORT £6.00
27 PROPSHAFT COUPLING 124 (DOUGHNUT) £34.00
31 CIRCLIP FOR PROPSHAFT CENTRE BEARING 124 £1.50
33 Propshaft coupling 124AS./AC £85.00
35 RUBBER PROPSHAFT CARRIER 124 1966-69 £34.00
Not Illustrated SUMP PLUG- OIL DRAIN PLUG 124 £5.00
Available On Request
Image Number Part Number Product Price ex VAT
8 HNG3004139528 PINION BEARING REAR-124 1982-85 £27.00
10 HNG3000848610 PINION BEARING FRONT - 124 £36.00
11 HNG3060055392 DIFF.CARRIER BEARING £32.00
13 HNG3010516670 SPRING WASHER FOR MOUNTING 124 £0.56
17 HNG3004144513 Nut for Differential AC/AS £9.62
19 HNG3016240921 TRAILING ARM BOLT 124/850 £4.85
28 HNG3015541321 BOLT FOR PROPSHAFT DOUGHNUT COUPLING £2.50
32 HNG1000004218 PROPSHAFT BEARING - 124 £15.00
