GEARBOX

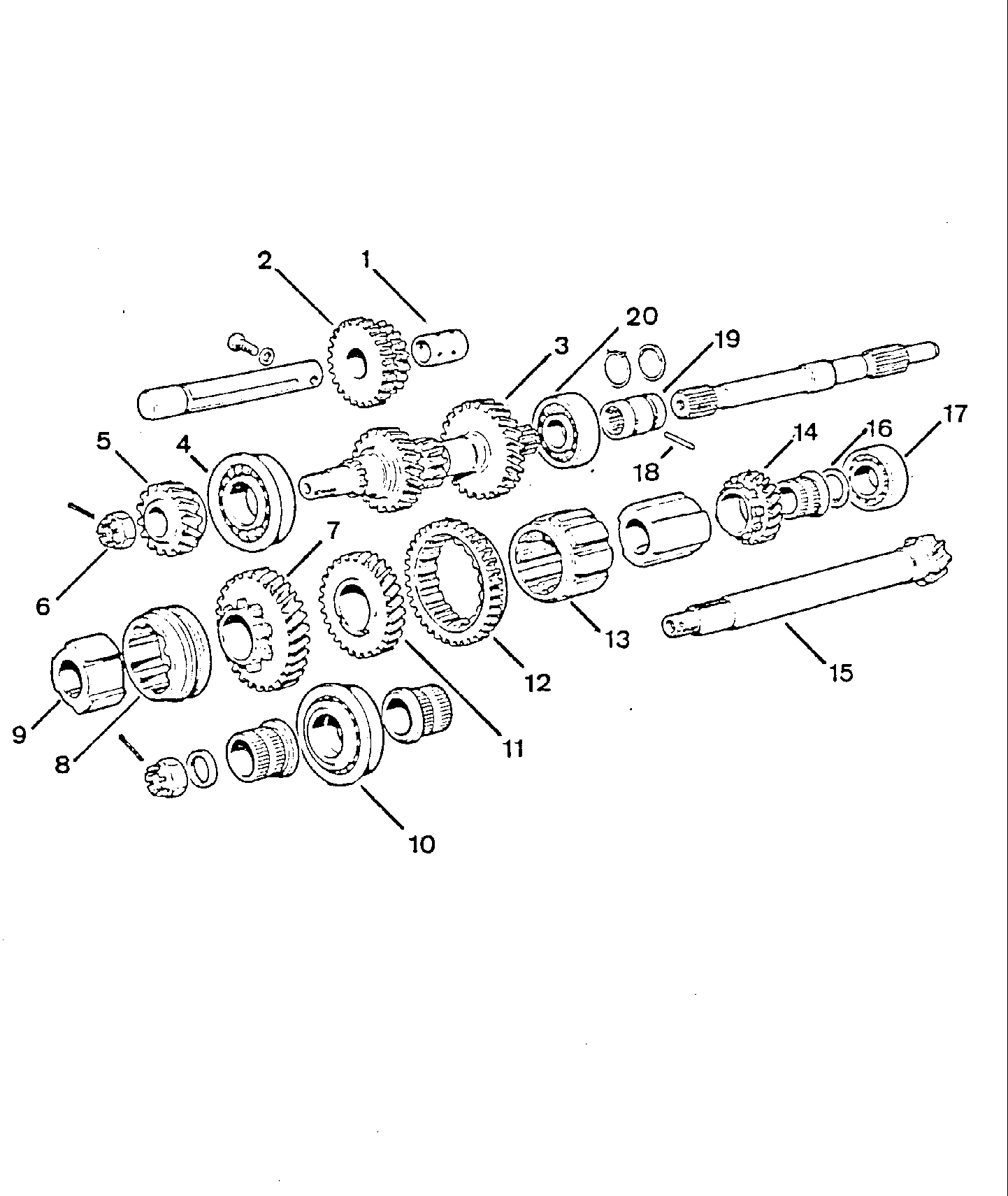

Image Number Product Price ex VAT
4 PRIMARY SHAFT BEARING 500 F/R/126 £22.00
6 GEARBOX BEARING 500 F/R/126 9698 £34.00
8 SLIDING HUB 500 2nd GEAR £27.85
9 SLIDING SLEEVE HUB 2ND GEAR 500 £24.04
20 PRIMARY SHAFT REAR BEARING 500 F/R/126 £9.60
Not Illustrated BREATHER FOR TRANSMISSION FIAT 500/ 126 /BIS £12.92
Not Illustrated GEARBOX INPUT SHAFT OIL SEAL 500/600 £5.85
Available On Request
Image Number Part Number Product Price ex VAT
1 3004062201 Bush Please Enquire
2 3004073295 Reverse Sliding Please Enquire
5 HNG3004064439 2ND GEAR 500/126Bis Please Enquire
6 3010801910 Castellated Nut & Split Pin Please Enquire
7 HNG3004128555 2ND GEAR 500 F Please Enquire
11 3004128556 3rd Speed Driven Gear Please Enquire
11 HNG1000005218 GEARBOX BEARING 500F/R/126 £44.50
12 HNG3004045504 1ST GEAR FIAT 500 £27.20
13 3004020029 3rd& 4th Speed Sliding Sleeve Please Enquire
14 3004128557 4th Speed Driven Gear Please Enquire
15 HNG3004092460 CROWN WHEEL AND PINION 500N/D £72.25
16 3004230546 Shim(0.1mm) Please Enquire
18 3000967540 Roll Pin Please Enquire
19 3004084610 Clutch Shaft to Primary Shaft Sleeve Please Enquire
Not Illustrated 3004274721 Gear Please Enquire
Not Illustrated HNG3004122850 SPEEDO CABLE 500 F GIARDINIERA Please Enquire
Not Illustrated 3004274721 3004274721 Please Enquire
Not Illustrated GGL46235263 STARTER MOTOR W/OUT SOLENOID 126/600/650 £70.00
